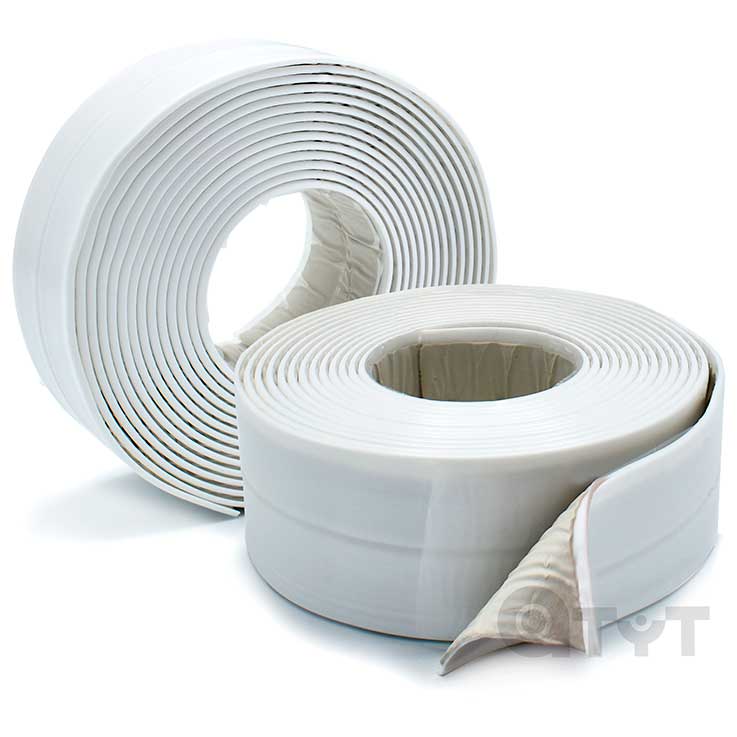

“BATHTRIM” BUTYL TAPE (1mm) (101)
https://www.atyt.es/shop/bathtrim-butyl-tape-1mm-101-123 https://www.atyt.es/web/image/product.template/123/image_1920?unique=874fadaLength: 3.35 m |
Thickness: 1 mm |
Support color: White |
Liner color: White |
Adhesive type: Butyl |
Packaging type: Blistered |
Share:
Composition

Support (A): Extruded flexible plastic
Adhesive (B): Butyl
Liner (C): White plastified liner
Features

Moisture resistant.

High range of temperature service,
going from -40ºC to + 90ºC.

Maintains flexibility and grip level
throughout its useful life.

Good level of adhesion on a wide
range of surfaces.

Easily adaptable, having a high level
of conformability.
Applications

Sealing in damp areas, joints between walls and floors and around drains.
Sealed around bathtubs, sinks and countertops to prevent the impregnation of water.
Widely used as a sealant for kitchen gas stoves, for sinks, edges of bathtubs, walls and spaces between walls generating a waterproof or dust proof seal.
Certifications
In the "Documents" tab you will find the certifications that our product has.
In case you need any other type of certification to apply the product in your field, please contact us.
Discover more
Usual Presentation
Access the specific tab in the item's data sheet.
Any other width and length available on request. We offer the possibility of customising the mandrel or packaging of the product of your choice.
Ask us about the various customization options and how we can help you.
Contact Us
Related products
STORAGE CONDITIONS
For better preservation of its properties, the product should be stored in its original packaging at a temperature between 20 and 30ºC, protected from direct sunlight and moisture. It is recommended to use the product within 24 months after receipt.
GENERAL WARRANTY CONDITIONS
ATyT recommends that the contact surfaces be clean of grease, oil, dust or any other non-stick substance.
The technical data contained in this product specification is intended to guide the end user and does not imply a legal guarantee regarding certain properties, due to the numerous influences that may occur during the handling and use of the product.
Before use, the consumer must evaluate the suitability of the product for its specific purpose and will assume all risk and responsibility in relation to such use.
ADHESIVE PROPERTIES | VALUES | METHOD |
---|---|---|
Tolerances for rectangular sections
|
Thickness: ±10% Width: - From 100mm:±2mm - More than 100mm:±3mm |
INTERNAL |
Tolerances for circular sections
|
Thickness: ±10%
Width: ±10% |
INTERNAL |
Specific gravity |
1,5 g/cm3
|
H6
|
Adhesion to Steel (Peel 90º) |
12 N/cm
|
H48
|
Adhesion to Steel (Peel 180º) |
24 N/cm
|
H41
|
Vapor and moisture transmission
rate |
0.13 g / m2
/ 24
hr / mm
|
ISO9932/BS
ISO15106
|
Dynamic Tensile Adhesion |
25 N/cm2
|
H5
|
Dynamic Shear Adhesion
|
20 N/cm2
|
H15
|
Temperature Application Range |
[+5ºC - +40ºC]
|
INTERNAL |
Temperature Service Range |
[-40ºC - +90ºC]
|
INTERNAL |

A: Outside diameter (mm)
B: Inner diameter (mm)
C: Width (mm)
D: Length (m)
A |
12 mm
|
|||
B |
3 mm
|
|||
C | 13, 22, 38 mm | |||
D |
3, 35 m
|
Composition

Support (A): Extruded flexible plastic
Adhesive (B): Butyl
Liner (C): White plastified liner
Features

Moisture resistant.

High range of temperature service,
going from -40ºC to + 90ºC.

Maintains flexibility and grip level
throughout its useful life.

Good level of adhesion on a wide
range of surfaces.

Easily adaptable, having a high level
of conformability.
Applications

Sealing in damp areas, joints between walls and floors and around drains.
Sealed around bathtubs, sinks and countertops to prevent the impregnation of water.
Widely used as a sealant for kitchen gas stoves, for sinks, edges of bathtubs, walls and spaces between walls generating a waterproof or dust proof seal.
Certifications
In the "Documents" tab you will find the certifications that our product has.
In case you need any other type of certification to apply the product in your field, please contact us.
Discover more
Usual Presentation
Access the specific tab in the item's data sheet.
Any other width and length available on request. We offer the possibility of customising the mandrel or packaging of the product of your choice.
Ask us about the various customization options and how we can help you.
