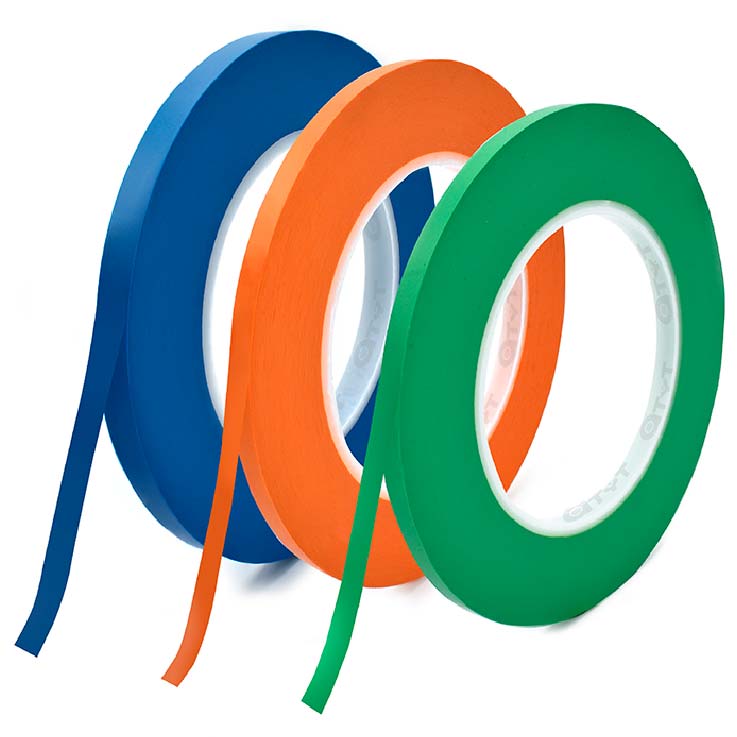

FINE LINE PVC TAPE (150 µm) (125)
https://www.atyt.es/shop/fine-line-pvc-tape-150-m-125-867 https://www.atyt.es/web/image/product.template/867/image_1920?unique=a81927dLength: 55 m |
Thickness: 150 µm |
Liner color: Without Liner |
Adhesive type: Rubber |
Packaging type: Shrink-wrapped with cardboard |
Share:
Composition

Support (A): PVC film
Adhesive Type (B): Rubber
Characteristics

Excellent resistance to high temperatures, being able to withstand cycles of 1 hour at 150ºC without losing its adhesive properties.

High level of conformability, being able to follow the contour lines and remain perfectly adhered as long as necessary.

It is removed easily, quickly and cleanly, without leaving traces of adhesive mass on the application surface.

Complies with the requirements of regulation 2000/53/EC and RoHS directive 2011/65/EU.

UV resistant for a short period of time.
Applications

Specially designed to be formed and follow the contours of difficult surface layouts without causing wrinkles or tears.
Highly recommended when painting applications need to be carried out at high temperatures, ensuring that the tape does not leave traces of adhesive mass on the surface.
Application in humid areas (wet-wet).
Covers extremely irregular surfaces, bodywork rivets and welds.
Also suitable for covering rubber tires.
Certifications
In the "Documents" tab you will find the certifications available for our product.
In case you need any other type of certification to apply the product in your field, please contact us.
Discover more
Usual Presentation
Access the specific tab in the item's data sheet.
Any other width and length available on request. We offer the possibility of customising the mandrel or packaging of the product of your choice.
Ask us about the various customization options and how we can help you.
Contact Us
Related Products
STORAGE CONDITIONS
For better preservation of its properties, the product should be stored in its original packaging at a temperature between 20 and 30ºC, protected from direct sunlight and moisture. It is recommended to use the product within 24 months after receipt.
GENERAL WARRANTY CONDITIONS
ATyT recommends that the contact surfaces be clean of grease, oil, dust or any other non-stick substance.
The technical data contained in this product specification is intended to guide the end user and does not imply a legal guarantee regarding certain properties, due to the numerous influences that may occur during the handling and use of the product.
Before use, the consumer must evaluate the suitability of the product for its specific purpose and will assume all risk and responsibility in relation to such use.
ADHESIVE PROPERTIES | VALUES | METHOD |
---|---|---|
Total thickness |
150 µm
|
ASTM D-1000
|
Tensile strength |
30 N/cm
|
ASTM D-1000
|
Elongation at break |
180 %
|
ASTM D-1000
|
Adhesion to steel
|
2,6 N/cm
|
ASTM D-1000
|
Backing Adhesion |
2,6 N/cm
|
ASTM D-1000
|
Maximum temperature resistance | 150 ºC |
INTERNAL
(1h cycles)
|

A: Outside diameter (mm)
B: Inner diameter (mm)
C: Width (mm)
D: Length (m)
A | 132 mm |
|||
B | 76 mm | |||
C | 3, 6, 9, 12, 15 mm | |||
D |
55 m
|
