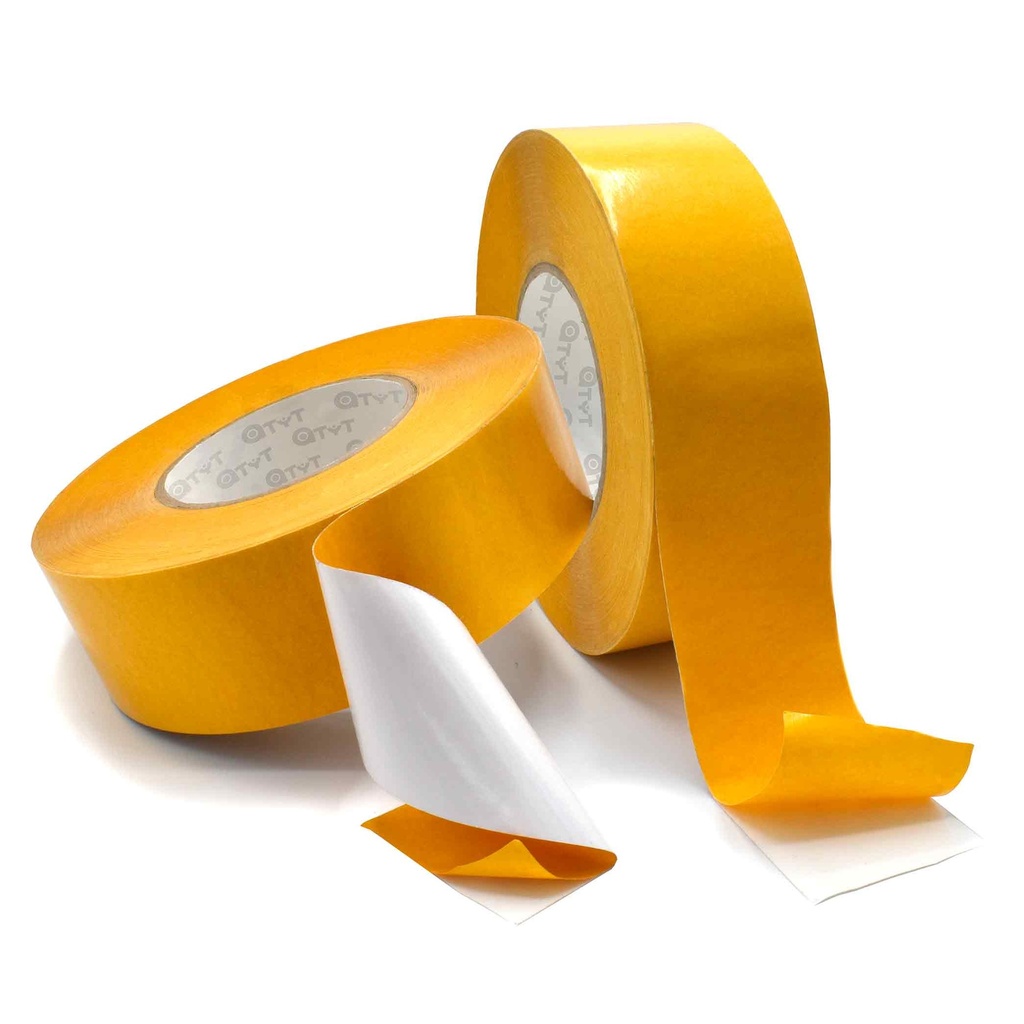

CINTA D/C PVC (250 µm) (5)
https://www.atyt.es/shop/cinta-d-c-pvc-250-m-5-1511 https://www.atyt.es/web/image/product.template/1511/image_1920?unique=3d16b31| Thickness: 225 µm |
| Support color: White |
| Adhesive type: Solvent |
Share:
STORAGE CONDITIONS
For better preservation of its properties, the product should be stored in its original packaging at a temperature between 20 and 30ºC, protected from direct sunlight and moisture. It is recommended to use the product within 24 months after receipt.
GENERAL WARRANTY CONDITIONS
ATyT recommends that the contact surfaces be clean of grease, oil, dust or any other non-stick substance.
The technical data contained in this product specification is intended to guide the end user and does not imply a legal guarantee regarding certain properties, due to the numerous influences that may occur during the handling and use of the product.
Before use, the consumer must evaluate the suitability of the product for its specific purpose and will assume all risk and responsibility in relation to such use.
| PROPIEDADES ADHESIVAS | VALORES | MÉTODO |
|---|---|---|
| Gramaje del liner | 90 g/m2 | INTERNO |
| Gramaje del adhesivo | 170 g/m2 | INTERNO |
| Espesor del soporte | 80 μm | ASTM D-3652 |
| Espesor total | 250 μm | ASTM D-3652 |
| Adhesión al acero | 14 N/cm | ASTM D-3330 (Tiempo de contacto 1 h) |
| Rango de temperatura de aplicación | [5ºC – 35ºC] | INTERNO |
| Rango de temperatura de servicio | [-40ºC - +130ºC] | INTERNO |
A: Diámetro exterior (mm)
B: Diámetro interior (mm)
C: Ancho (mm)
D: Longitud (m)
| A | 127 mm | 159 mm | ||
| B | 76 mm | |||
| C | 19, 25 mm | 38, 50 mm | ||
| D | 25 m | 50 m | ||
